PrimeLOC attachments

  • Dual retention
  • Pivoting technology
  • Compatibility


Innovative coating technology

The PrimeLOC abutments are coated with Zirconium Carbon Nitride. This tremendously hard, fully biocompatible ceramic PVD (physical vapor deposition) coating is very resistant to wear and abrasion. In addition to its functional surface properties, it has an esthetic rose-gold color. Zirconium accumulates less plaque than titanium and can, therefore, counteract inflammatory processes.



PrimeLOC High Performance Plastic (HPP) retentions inserts

PrimeLOC High Performance Plastic retention inserts have a lower tendency to absorb water and high resistance to chemicals and fats, including alcoholic disinfectants. The inserts are extremely durable and have an excellent dynamic load capacity. Standard nylon versions of the inserts are also available.

Retention inserts are conveniently packaged on trays for easy pickup with the PrimeLOC universal tool.


BioniQ hex 1.25 screwdrivers compatible

In addition to the LOCATOR tri-lobe drive mechanism, PrimeLOC attachments feature an internal 1.25mm hex drive mechanism in the center of the abutment, which is easy to tighten with a standard BioniQ hex 1.25 screwdriver. This ensures that the abutments meet your needs without requiring purchasing additional tools.


Straight, angled, bar

The PrimeLOC attachments range includes straight, angled and bar attachments. The offer of several gingival heights (1 to 5 mm) enables choosing the ideal abutment to exactly match the patient’s anatomical conditions.


Straight attachments can be used with two types of retention inserts. Standard dual retention inserts can be used for implants with a divergence of up to 10°, i.e., a total divergence of 20° between the two implants. Extended pivot inserts can be used for implants with a divergence of up to 20°, i.e., a total divergence of 40° between the two implants.

PrimeLOC straight attachments are available for both BioniQ QN and QR prosthetic platforms in gingival heights from 1 to 5 mm.

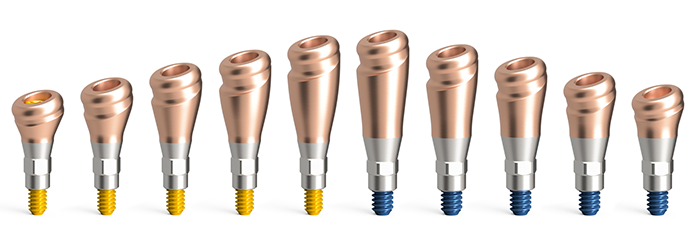

PrimeLOC angled attachments with an 18° angulation allow correcting the disparallelity of inserted implants. PrimeLOC angled attachments are supplied in a set together with a prosthetic kit containing the components needed to polymerize into a restoration and interchangeable HPP inserts with an extended pivot. The PrimeLOC angled attachments can only be used with the extended pivot retention inserts.

PrimeLOC 18° angled attachments are available for both BioniQ QN and QR prosthetic platforms in gingival heights from 1 to 5 mm.


Bar attachments with M2.0 thread are designed to be screwed directly into the CAD/CAM milled bar.

PrimeLOC bar attachments


For all leading implant systems

The LASAK BioniQ QR and QN attachments are in stock. We can also provide PrimeLOC attachments for other systems on request. The delivery time is seven days.

  • Bego
  • BioHorizons®
  • Dentsply Sirona®
  • Medentis
  • MegaGen
  • Nobel Biocare®
  • Osstem® / HiOssen Implant
  • Straumann®


Satisfaction Guarantee

As a testament to our world-class quality control, all PrimeLOC attachments are subject to a 100% satisfaction guarantee. This includes a 3-year guarantee on PrimeLOC attachments.



You can buy PrimeLOC attachments and accessories at

PrimeLOC is a trademark of MEDEALIS GmbH, Germany. Please note that the other trademarks mentioned here are the property of their respective owners.
