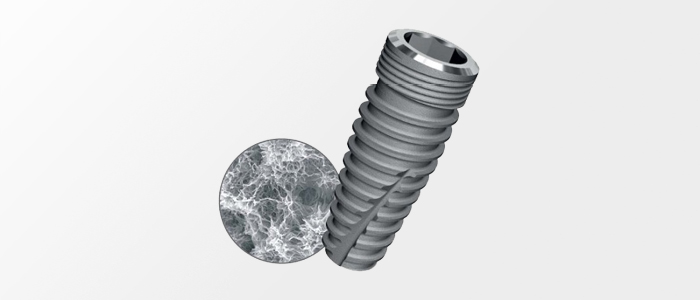

IMPLADENT implant system

The production of IMPLADENT dental implants, which had been in progress since 1993, has been discontinued and can no longer be ordered. However, you can still order the basic range of prosthetic, impression and laboratory components for the prosthetic series 2.9, 3.7 and 5.0 as well as compatible instruments for treating your patients with IMPLADENT implants.



How to order?

Components and instruments for the IMPLADENT system cannot currently be ordered through the e-shop. We will gladly accept orders via our customer service department (order@lasak.cz) or contact your sales representative.



This page provide an overview to help you identify implants that need a new prosthetic restoration. First, it is important to determine whether or not the implant has an internal octagon. Next, the appropriate prosthetic platform must be correctly assigned. Within the IMPLADENT system, implants of six diameters have been produced in a variety of designs over the years. However, only three prosthetic platforms are used to distinguish between types of prosthetic and laboratory components.

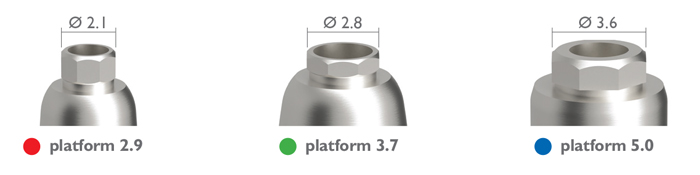

Prosthetic platforms

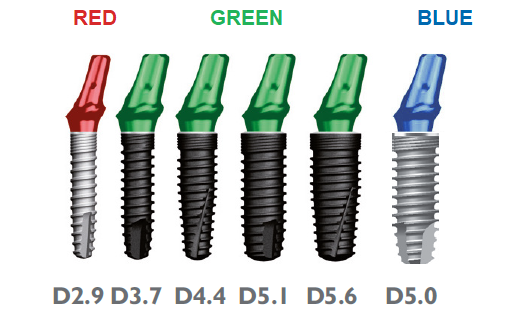

Red prosthetic platform 2.9 is intended for narrow D2.9 IMPLADENT implants.

Green prosthetic platform 3.7 is intended for D3.7, D4.4, D5.1 and D5.6 IMPLADENT implants.

Blue prosthetic platform 5.0 is intended for D5.0 IMPLADENT implants.

The matching of the prosthetic and laboratory components to the corresponding prosthetic platform is indicated in the catalog by colored symbols.



Implant identification

If the patient has an implant passport, the implant identifiers below will help identify the prosthetic platform. If an implant passport is not available, the following typical implant x-rays will assist in identification.

STI Screw-shape implants without octagon
STIO Screw-shape implants with internal octagon
SHA Screw-shape implants without octagon
SHAO Screw-shape implants with internal octagon
STI-BIO-C Screw-shape implants with internal octagon
VHA Cylindrical implants without octagon
VHAO Cylindrical implants with internal octagon
ACCEL Tapered screw-shape implants with internal octagon

Notification

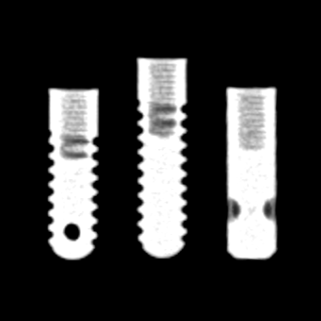

D3.7 and D3.6 implants made before 1996 don’t have an internal octagon. If your patient has one of these implants, please contact your sales representative or email us at order@lasak.cz for treatment options.



Implants – STRAIGHT

Implants – series 2.9

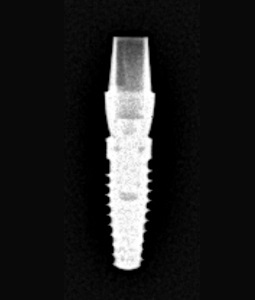

D2.9 implant with internal octagon. The corresponding prosthetic platform 2.9 is marked in red in the catalog.

D2.9 implant with abutment for screw-retained restorations with gingival height L3.

Implants – series 3.7

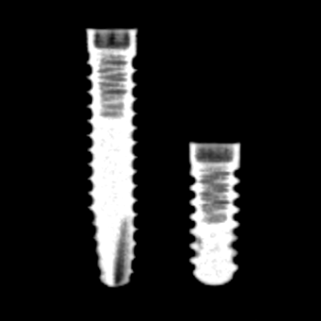

D3.7 implants manufactured prior to 1996 that do not have an internal octagon have an internal thread even in the neck part.

Untreated D3.7 implants with typical lucency in the area of the inner octagon in the neck part.

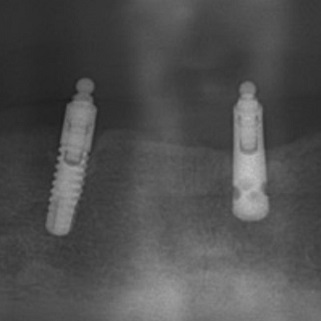

D3.7 implants support the L2 ball attachment on the left and L1 on the right.

Implants – series 5.1

D5.6 BIO-ACCEL  D5.6 HA-ACCEL

Implant D5.1 with an abutment not fully fitted into the internal octagon.

Typical image of the D5.1 implant after removal of the prosthetic restoration.

Implants – series 5.0

D4.4 BIO-ACCEL  D4.4 HA-ACCEL

The D5.0 implants support the screw-retained Cresco system framework with typical slotted abutment screws.

D5.0 implant.

Screw and cylindrical D5.0 implants. In a more exposed image, the threaded shaft for the fixation screw would be visible below the inner octagon.





Implants ACCEL – TAPERED

Implants – series 4.4

D4.4 BIO-ACCEL  D4.4 HA-ACCEL

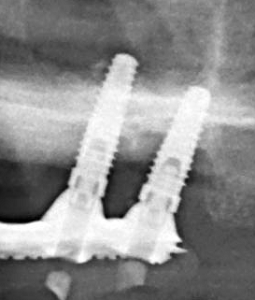

The D4.4 implants support the screw-retained Cresco system framework.

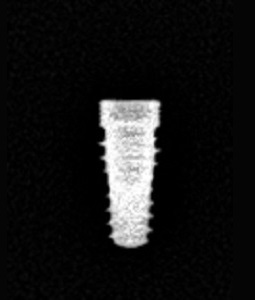

Untreated D4.4 implant without cover screw.

The D4.4/L12 implant with the L4 abutment for cemented restoration.

Implants – series 5.6

D5.6 BIO-ACCEL  D5.6 HA-ACCEL

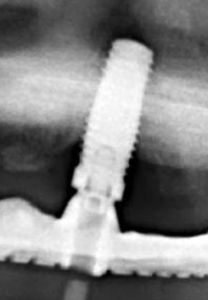

The D5.6 implant supports the screw-retained Cresco system framework.

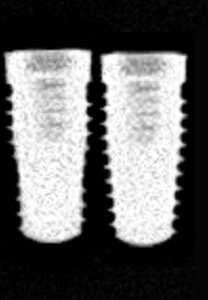

The D5.6 implants with BIO and HA surface.







Screw identification

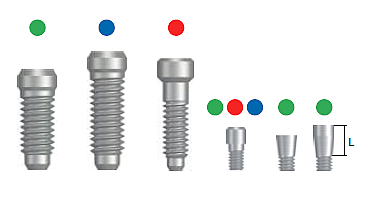

The length of the bolts can be a useful guide when identifying them. The table below shows the actual total lengths of the screws – measured from the tip to the top of the head. This information is particularly important when differentiating screws for the 3.7 and 5.0 series. Although they have the same diameter, they differ in length, and confusion can lead to incorrect tightening of the prosthetic restoration.

Screw Marking Ref. No. Overall length
Screw for abutment platform D3.7 552.3 6.7 mm
Screw for abutment platform D5.0 652.3 7.8 mm
Screw for abutment platform D2.9 752.3 7.3 mm
Bridge screw 1641.3 4.7 mm
Screw for TS abutment, L2 246.3 3.5 mm
Screw for TS abutment, L3 346.3 4.3 mm

Only the blue 5.0 platform prosthetic and laboratory components are intended for use with IMPLADENT D5.0 implants. The components of the green 3.7 platform, which are used for IMPLADENT D5.1 implants, cannot be used.
